4. Insert/Paste a Dialog Box Template Code into a Script

About this task

  • Insert  template code a Program Editor script
  • Paste template code into a Program Editor script.

Insert Template Code into a Program Editor Script

Procedure

  1. Place the cursor in a Program Editor script where the dialog box code will be inserted.
  2. Click Edit>Insert Picture on the Program Editor menu bar.

    The Dialog Editor opens displaying a new dialog box.

  3. Do one of the following.
    • Configure the new dialog box.
    • Click File>Open on the Dialog Editor menu bar to open an existing dialog box.

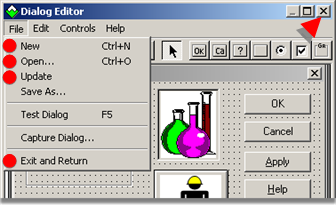

  4. Do one of the following.
    Click On the
    File>New Menu bar
    File>Open Menu bar
    File>Update Menu bar
    File>Exit and Return Menu bar
    Close button Title bar
    Press On the
    Ctrl+N Keyboard
    Ctrl+O Keyboard

    A message box opens asking if you want to save the dialog box template.

  5. Click Yes.

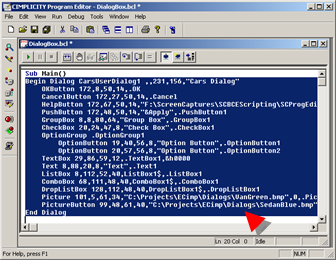

    Result: The dialog box template code is inserted into the Program Editor script at the specified location.

    Paste Template Code into the Program Editor Script

  6. Click Edit>Insert Picture on the Program Editor menu bar.

    The Dialog Editor opens displaying a new dialog box.

  7. Do one of the following.
    • Configure the new dialog box.
    • Click File>Open on the Dialog Editor menu bar to open an existing dialog box.
  8. Select the dialog box.

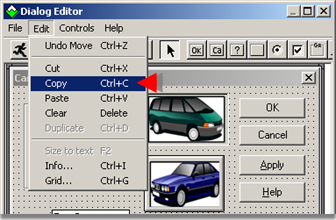

  9. Do one of the following.
    • Click Edit>Copy on the Dialog Editor menu bar.
    • Press Ctrl+C on the keyboard.
  10. Select the Program Editor.
  11. Place the cursor where the code should be inserted.

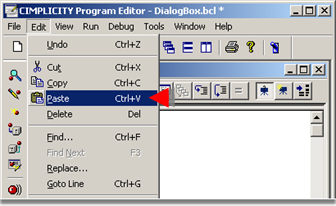

  12. Do one of the following.
    • Click Edit>Paste on the Program Editor menu bar.
    • Press Ctrl+P on the keyboard.

Results

The Dialog script is pasted at the insertion point in the Program Editor script.
