5.3. Use Quick Watch
About this task
When the debugger has control , you can use the Quick Watch window to do a quick check of a variable value, without adding the variable to the Watch list .
Procedure
Select the variable whose value you want to quickly check.

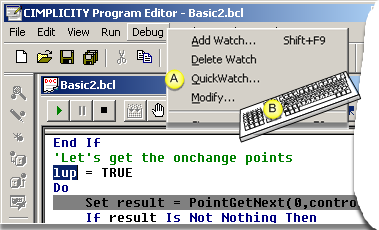

Do one of the following.
A
Click Debug>QuickWatch on the Program Editor menu bar.
B
Press Alt+D+Q on the keyboard.
The QuickWatch window opens displaying the value for the selected variable.
(Optional) Evaluate another variable.
Enter the variable in the Variable field.
Click Evaluate.
The variable is evaluated; if it has a known value, the value displays in the evaluation box.
Click Close.
Results
The QuickWatch window closes; you can continue debugging the script.
Note: You must close the QuickWatch window in order to return to the script window.
