7. Exit from the Dialog Editor

Procedure

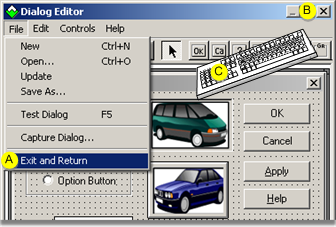

  1. Do one of the following.
    A Click File>Exit and Return on the Dialog Editor menu bar.
    B Click the Exit button on the Dialog Editor title bar.
    C Press Alt+F4 on the keyboard.

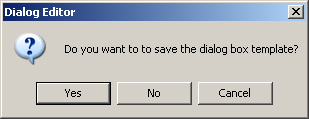

    A message opens with the following question.

    Do you want to save the dialog box template?

  2. Do one of the following.
    • Click Yes.

    Results:

    1. The Dialog Editor closes.
    2. The dialog box template code is inserted into the Program Editor script.

    Important: Any highlighted line or lines in the script will be overwritten.

    • Click No.

Results

The Dialog Editor closes.

  • Click Cancel.

The Exit command is cancelled; the Dialog Editor remains opens.
