Option 1. Open a Blank Program Editor

Procedure

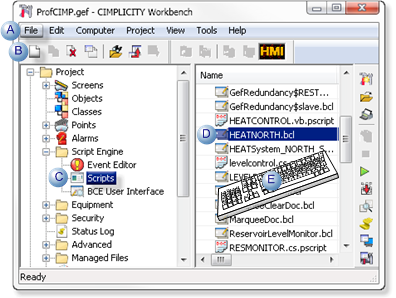

  1. Select Project>Basic Control Engine>Scripts in the Workbench left pane.
  2. Do one of the following.
    A Click File>New  on the Workbench menu bar.
    B Click the New Object button on the Workbench toolbar.
    C In the Workbench left pane:
    Either Or
    Double click Scripts.
    1. Right-click Scripts.
    2. Select New on the Popup menu.
    D
    1. In the Workbench right pane.
    1. Right-click any script (.bcl file).
    2. Select New on the Popup menu.
    E Press Ctrl+N on the keyboard.

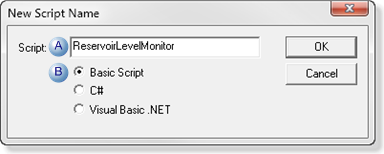

    A New Script Name dialog box opens.

  3. Right-click Scripts.
  4. Select New on the Popup menu.
  5. Right-click any script (.bcl file).
  6. Select New on the Popup menu.
  7. Do the following.
    A Enter a name in the Script field.
    B Check Basic Script.

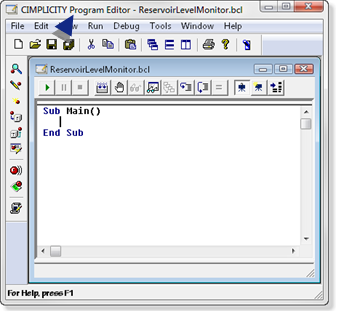

Results

A blank Program Editor window opens.
