2.1.5. Enter SCHEDULE Region Alarming/Logging Specifications

About this task

The region should have its alarming and logging features enabled.

Region Alarming

Region Logging

Region Alarming

Procedure

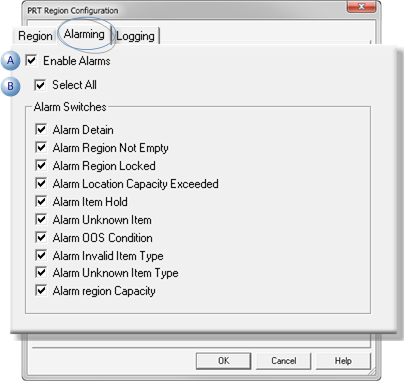

Select the Alarming tab in the PRT Region Configuration dialog box.

Do the following

Result: All of the check boxes on the tab are selected.


A	Check Enable Alarms.
B	Check Select ALL.

Region Logging

Select the Logging tab in the PRT Region Configuration dialog box.
Do the following.

Results

All of the check boxes on the tab are selected.


A	Check Master Logging Enable.
B	Check Select ALL.
