.NET Control: Insert into a CimEdit Screen

About this task

.NET controls can be easily found and placed onto a CimEdit screen using the Ribbon bar .NET button.

1 Open the .NET Component Browser.
2 Select a .NET control to insert.
3 Adjust the control on the screen.
  1. Open the .NET Component Browser
  1. Click the .NET button in the Drawing>Objects group on the CimEdit Ribbon bar.

The ActiveX placement cursor displays on the screen.

  1. Place the cursor where the component will be placed initially.
  2. Click the left-mouse button.

A .NET Component Browser opens; the browser (initially) includes the following categories of .NET components.

Note: You can modify the list by adding and/or removing components.
A System.Windows.Forms (Forms-based controls)
B Windows Presentation Framework (WPF controls)
C Sample Components Note: CIMPLICITY provides two sample controls
  1. Select a .NET Control to Insert

Do the following.

A Select a component in the .NET Component browser's expanded tree.
B Click OK.

Result: The component displays on the CimEdit screen.

  1. Adjust the Component on the Screen

Screen editing actions and configuration actions with the Properties dialog box on a screen that contains hosted .NET components all work essentially the same as on a screen that contains only OLE and CIMPLICITY native objects.

Actions include, but are not limited to:

  • Copy
  • Paste
  • Undo
  • Delete
  • Resize
  • Save
  • Move
  • Select
  • Load

Note: For most actions, the control will have to be in configuration mode.

  • .NET Control: Display modes.
  • .NET Control: Resize.
  • .NET Control: Move.

.NET Control: Display Modes

When .NET controls are placed initially on the CimEdit screen they are in configuration mode, which displays as follows.

A The initial object size is the same regardless of what control is selected.
B Text identifies the selected component.

The control display when you double-click it depends on the default control configuration and properties.

A The initial object size is the same regardless of what component is selected.
B Possible displays include:
  • A representation of the runtime image. (e.g. Calendar).
  • A blank box.
C Area surrounding control display, if there is one, standardizes the initial insert size.
Important: Because these components come from different sources, the display may require additional scripting or configuration for anything to display. If the image is blank or not what you expect, consult the documentation from the component's source to learn what is required.

.NET Control: Resize

You can resize the .NET component using the same methods as you use for any CimEdit object.

Note: The:
  • Resize process may require some toggling between the configuration mode image and the runtime (or blank) representation.
  • Actual runtime display may or may not resize, depending on the control. However the area around it can be increased or decreased.

Examples

  • The initial size of a checkbox control is the same as any other control. The checkbox itself cannot be resized; the area around the checkbox can be reduced so only the checkbox displays.
  • The actual text box in a Rich Text box control can be larger or smaller, as required.

Procedure

  1. Select the handle that will resize the object in the appropriate direction
  2. Drag the handle in the direction that will correctly resize the object.
  3. (If necessary) Click the left mouse button outside of the component.

    The display will toggle to the view that does not currently display.

  4. Toggle back and forth until the image is the appropriate size.

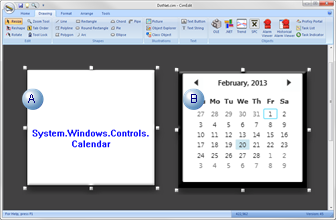

    Display Mode Guidelines
    A Configuration Resize the .NET component object the same say you resize any CimEdit object.
    • Select a handle and move it.
    • Enter new Geometry specifications in the object's Properties dialog box.
    Note: If the component size is reduced, the identification label may no longer display when the control is in configuration mode.
    B Runtime
    • If the component has enough information to display a runtime representation, this display will guide the resizing.
    • If the runtime image is blank, you can estimate the size and modify it when your configuration produces an image.
    guide: Guideline: Component Identification

    Naming the component will enable you to identify it easily. Instances when entering a unique name will help include:

    • The size is reduced so the configuration mode no longer displays the name.
    • The runtime mode is blank.
    • More than one of the same component is required.
    • A CIMPLICITY procedure that requires the control name is being configured.

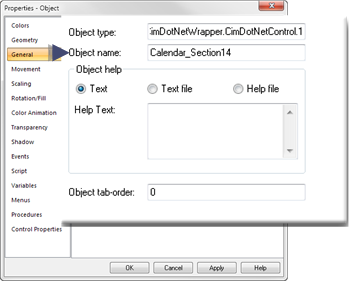

    1. Right-click the component; select Properties on the Popup menu.

    The component's Properties dialog box opens.

    1. Select General.
    2. Enter a unique name in the Object Name field.

    .NET Control: Move

    Move the .NET component object the same way you move other CimEdit objects.

    Note: The object must be in the configuration mode to move it.
    • Select the object and move it.
    • Enter new Geometry specifications in the object's Properties dialog box.
