Step 6.1.1. Start the CNC QuikStart Demo Project
Procedure
- Click Start on the Windows task bar.
-
Select (All) Programs> HMI SCADA - CIMPLICITY 10 >Start CNC QuikStart Demo project.
If the CNC_QUIKSTART project is not running

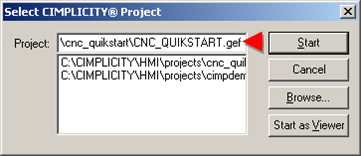

A Select CIMPLICITY® Project dialog box opens.
- Select CNC_QUIKSTART.gef.
- Click Start.
A message box asks if you want to start the project.
- Click Yes.

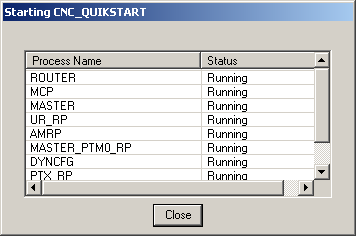

A Starting CNC_QUIKSTART window opens displaying the CIMPLICITY process startups.
Result: A CIMPLICITY® Login dialog box opens.
When the CNC_QUIKSTART project is running
Result: A CIMPLICITY® Login dialog box opens.
-
Enter a User ID and Password for a user who has access to CNC runtime screens.
- Click OK.
Results
An HMI for CNC QuikStart Main Menu screen opens.

Note: Your computer must be connected to a CNC and the CNC must be powered up for the CNC Demo project to function properly.
