CIMPLICITY3. Delete a Global Parameter from the List
About this task
If it is necessary to de-activate a global parameter, you can by deleting it from the Workbench list.
Warning: Delete a global parameter only when instructed to by documentation or a GE Intelligent Platforms representative.
Procedure
-
Select either of the following.
Select To delete a: Project Parameters Project global parameter. Computer Parameters System global parameter. - Select the global parameter(s) you want to delete.
-
Do one of the following:
- Click the Delete button
on the Workbench toolbar. - Click the right-mouse button on your selection; select Delete on the Popup menu.
- Click Edit>Delete>Object on the Workbench menu bar.
- Press Del on the keyboard.
A message box opens asking you if you want to delete the selected items.
- Click the Delete button
-
Click Yes.

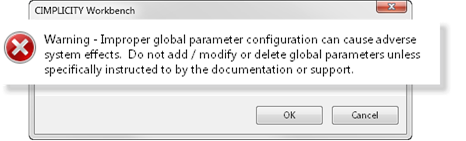

A message box opens warning you that improper configuration can cause adverse effects.
-
Click OK if you are sure you want to delete the global parameter.
The global parameter is deleted from the list.
- Do a CIMPLICITY configuration update.
Results
The global parameter is deleted from the list and de-activated in the CIMPLICITY system and/or project.
