4.3. Class Screen Assignment
Procedure
- Open the Class dialog box for the class with which the screen will be associated.

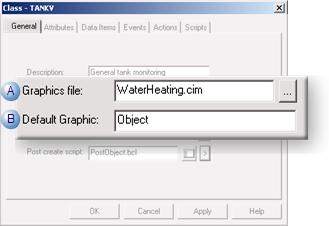

- Select the General tab.
-
Enter the following.
Field Enter A Graphics file CimEdit screen name that will be associated with the class. The selected CimEdit screen contains the source objects that are available to object designers. B Default Graphic Name of the CimEdit group object that displays as the default when a class object is dragged to a new CimEdit screen.
Results
When an object that is created from the class is dragged from the Workbench into a new CimEdit screen, a class object graphic, which is linked to the class source graphic displays.
Note: An object designer can select another object in the default object's Properties dialog box.
