Step 2.1. Select the Historian Logging Option(s)

Procedure

  1. Open the CIMPLICITY project with data that will be sent to Historian.

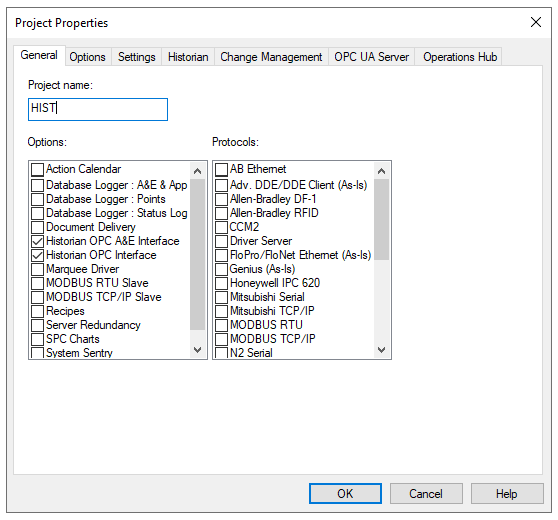

  2. Open the Project Properties dialog box.
  3. Select the General tab.
  4. Select either or both of the following.
    A Historian OPC A&E Interface CIMPLICITY:
    • Logs alarm and event data to Historian through the OPC Alarm & Event server.
    • Maps fields in the ALARM_LOG and EVENT_LOG to be consistent with fields provided by the OPC Alarm & Event server.
    B Historian OPC Interface CIMPLICITY
    • Logs data to Historian through the CIMPLICITY OPC server.
    • Maps fields in the DATA_LOG to resolve differences in how data is identified between the CIMPLICITY DATA_LOG and the real-time Collector.
    Note: This enables the Historian OPC Interface for this project.

Results

A Historian tab displays in the Project Properties dialog box when you select either or both Historian OPC options.
