Step 2.5.1. Add a Viewer to be Included in Synchronization

Procedure

  1. Expand Deployment Configuration in the CIMPLICITY Configuration Editor left pane.
  2. Select Viewers.
  3. Do one of the following.
    • Click Edit>Add on the CIMPLICITY Configuration Editor menu bar.
    • Right-click Viewers; select Add on the Popup menu.

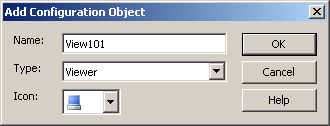

    An Add configuration Object dialog box opens when you use either method.

  4. Enter the following.
    Field Description
    Name The viewer name. Note: The name must be the name that displays on the Computer Name tab in the Windows Systems Properties dialog box.
    Type Viewer
    Icon Select a computer.
  5. Click OK.

Results

The Viewer is added to the list in the Configuration Window left pane.
