Step 2.5.4. Add a Source Folder for the Server/Viewer Synchronization

Procedure

  1. Expand Deployment Configuration>Viewers><Viewer Name> in the CIMPLICITY Configuration Editor left pane.

    Where

    Viewer Name is the viewer you are targeting for synchronization.

  2. Select Folders.

    Note: The Folders item has no parameters.

  3. Do one of the following.
    • Right-click Folders; select Add on the Popup menu.
    • Select Edit>Add on the CIMPLICITY Configuration Editor menu bar.

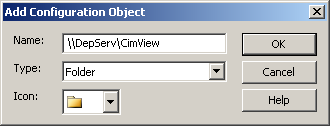

    An Add configuration Object dialog box opens.

  4. Specify the following.
    Name The UNC path on the configuration server of the folder that will contain source files. Example \\DepServ\CimView Where \\DepServ is the configuration server. \CimView is the shared folder.
    Type Folder
    Icon Select a folder.
  5. Click OK.

Results

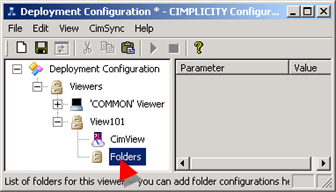

CIMPLICITY deployment adds the folder to the viewer's list of folders in the CIMPLICITY Configuration Editor left pane.
