Point Alarm Acknowledge Actions

A Point Alarm Acknowledge action acknowledges the alarm defined by the Alarm ID and Resource ID.

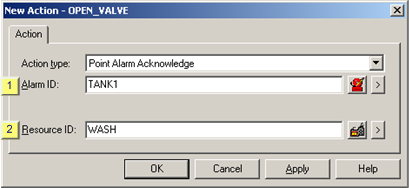

To create this Action, enter the following information in the New Action dialog box:


1	Alarm ID
2	Resource


1	Alarm ID

ID of an alarm to be acknowledged.

(Optional) Click either of the following to select the alarm ID.


	Browse button	Opens the Alarm browser.
	Popup Menu button	Displays Popup menu to create a new alarm, browse for or edit an existing alarm


2	Resource

Resource of the alarm to be acknowledged.

Note: This field is automatically filled in, when an Alarm ID is entered, with the resource assigned to the alarm.

(Optional) Click either of the following to select the alarm ID.


	Browse button	Opens the Resource browser.
	Popup Menu button	Displays Popup menu to create a new resource, browse for or edit an existing resource.
