Option 6.6. Select Event Display Fields

Procedure

  1. Click View on the CIMPLICITY Event Editor menu bar.
  2. Select By Event.
  3. Do one of the following.

    Method 1

    Click the Field Chooser button on the Event Editor toolbar.

    Method 2

    1.  Click the right mouse button in the Event Editor left pane.
    2. Select Field Chooser on the popup menu.

    Method 3

    Select Field Chooser on the Event Editor View menu .

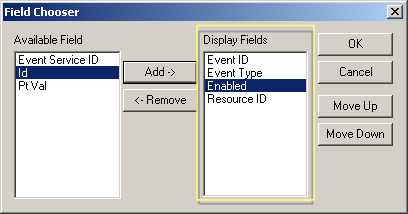

    Result: The Field Chooser dialog box for the Event field columns opens.

    Field Chooser features are as follows.

    Feature Description
    Lists Available Field Event fields that are not currently being displayed.
    Display Fields Event fields that are currently being displayed. The fields display in columns. Columns go from left to right, starting at the top of the list and moving down.
    Fields Selections correspond to the selections in the Event dialog boxes.
    Buttons Add Add selected available fields to the Display Fields list
    Remove Stops displaying selected fields by sending them back to the Available Field list.
    OK Saves the selection and closes the Field Chooser
    Cancels Cancels the latest selections.
    Move Up Each click moves a selected field one column to the left. Note: Event ID is always the farthest left.
    Move Down Each click moves a selected field one column to the right.
  4. Click OK when you have finished making your selections.

Results

The Event Editor left pane displays your selections.
