Option 6.8. Search for an Event

Procedure

  1. Click View on the CIMPLICITY Event Editor menu bar.
  2. Select By Event.
  3. Do one of the following.

    Method 1

    Click the Search button on the Event Editor toolbar.

    Method 2

    1. Right-click the Event Editor left pane.
    2. Select Search on the popup menu.

    Method 3

    Select Search on the  Event Editor View menu.

    Method 4

    Press Ctrl+S on the keyboard.

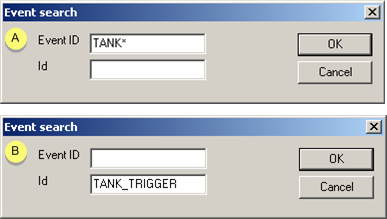

    A Event Search dialog box opens.

    Search criteria are as follows.

    Field Description
    A Event ID ID or partial ID with a * wild card of the event or events you want to find.
    B Id ID of a point used in an event definition.
  4. Click OK.

Results

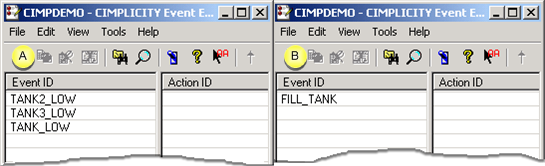

Events that fill your criteria display in the Event Editor.

Tip: Leave the fields blank in the Event search dialog box to re-display all of the events in the Event Editor after you have searched for selected events.
