4. RAMPSOAK: Faceplate
About this task
A Ramp/Soak function block generates an output over time, based on a user-specified profile.
The profile consists of ten ramp/soak segments.
Each segment consists of a:
Procedure
- Soak value (target)
- Ramp rate
-
Soak-time
The output of the ramp/soak block is typically a temperature setpoint for a process.

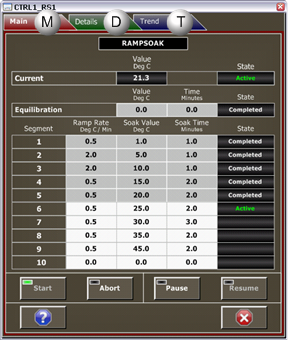

The RAMPSOAK faceplate allows operators to interface with the profile and, if necessary, modify it.
Click a tab button to display and review features for each RAMPSOAK faceplate frame.
