CIMPLICITY2. CIMPLICITY Project Backup
About this task
Each CIMPLICITY project has several sub-directories associated with it.
The standard project sub-directories are:
| Subdirectory | Hold |
|---|---|
| alarm_help | Operator Help files for alarms (that you created and put them in this directory). |
| arc | Database Logger archive files. |
| data | All the runtime configuration files. |
| lock | The project lock file. |
| log | All status log files, and program error files. |
| master | All the master copies of configuration files. |
| screens | All CimView screens (default directory). |
| scripts | All Basic Control Engine scripts for a project. |
To make a backup copy of your project:
Procedure
- Open the Windows Explorer.
- Locate the project directory for the project you want to back up.
-
Copy the project's directory to a CD or DVD.
Important: If the project is running, some files in this directory may be locked and will not be deleted.

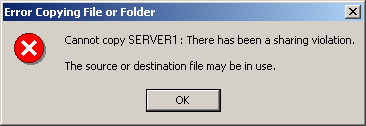

If you try to back up a running project, an error message opens telling you there is a sharing violation.
