Open an Existing Attribute Set Dialog Box

About this task

CIMPLICITY provides several methods to open an Attribute Set dialog box for an existing attribute set.

  • Workbench
  • Point Properties dialog box's Advanced General tab

Workbench

Procedure

  1. Select Project>Points>Attribute Sets in the Workbench left pane.
  2. Select an attribute set in the Workbench right pane.

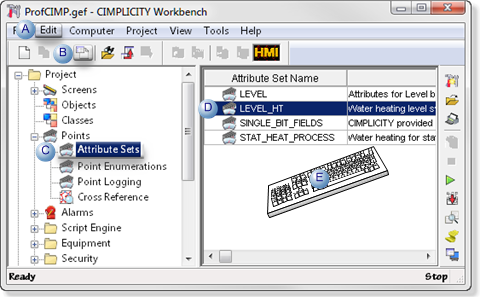

  3. Do one of the following.
    A Click Edit>Properties on the Workbench menu bar.
    B Click the Properties button on the Workbench toolbar.
    C In the Workbench left pane:
    1. Right-click Attribute Sets.
    2. Select Properties on the Popup menu.
    D In the Workbench right pane:
    Either Or
    Double click an attribute set.
    1. Right-click an attribute set.
    2. Select Properties on the Popup menu.
    E Press Alt+Enter on the keyboard.

    Result: The Attribute Set dialog box opens with the selected attribute set.

    Point Properties dialog box's Advanced General tab

  4. Right-click Attribute Sets.
  5. Select Properties on the Popup menu.
  6. Right-click an attribute set.
  7. Select Properties on the Popup menu.
  8. Select the General tab in the Point Properties dialog box for the point you are configuring..
  9. Click Advanced to put the General tab in advanced mode.
  10. Select the point attribute set  in the Attribute set field that will be modified.
  11. Click the Popup Menu button; select Edit on the Popup menu.

Results

The Attribute Set dialog box opens with the selected attribute set.
