Step 2. Set Projects Options

About this task

Select the Projects tab in the CIMPLICITY® Options dialog box.

Options are as follows.


1	Connect to another computer as a Server.
2	Connect to CIMPLICITY Projects as a Viewer.
3	Stop a running project.
4	Add a project to the projects list.
5	Start a project in the projects list.
6	Delete a project from the list.

Select a computer in the Computer name drop-down list to which your computer has access and is currently running CIMPLICITY software.

Note: If the computer name does not appear in the list, type it in the Computer Name field and click Connect.

The projects that are currently running on the selected computer display in the Running Projects field.

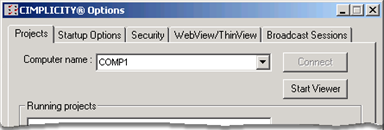

In the CIMPLICITY Options window, select the Projects tab.
The tab displays the local computer in the Computer name field.

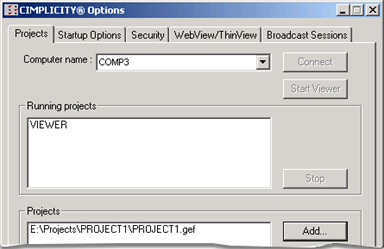

Click Start Viewer.
The router starts and VIEWER appears in the Running projects box.
The Computer name field now has computer names to which the local computer has Viewer access.
Select another computer from the new Computer name drop down menu.
Note: If you type in the computer name click Connect to connect to the computer.

Projects that are running on the selected computer appear in the Running projects box. You can now view them through CimView.

You may stop any project that is currently running on the computer to which you are currently connected as a server.

After the project is stopped, CIMPLICITY removes the name from the Running projects list.

The project you select is added to the Projects list.

The project you select is started. When startup is complete, CIMPLICITY adds the project name to the Running projects list.

You can delete any project from the list and disconnect it from your computer.

After the project is deleted from the list, CIMPLICITY removes the name from the Projects list.
