Step 3.1.1. Select a Filter Setup to Load or to Modify

About this task

  • Alarm Viewer Control Setup button.
  • Alarm Viewer Setup button.
  • Workbench Alarm Setups icon (modify a setup)
  • Alarm Sound Manager Setup field

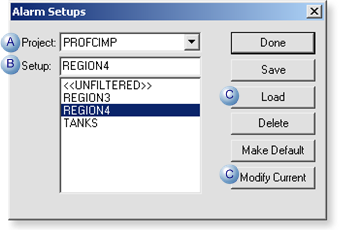

Alarm Viewer Control Setup Button

Procedure

  1. Click Setup in an Alarm Viewer:

    The Alarm Setups dialog box opens.

  2. Select a setup to modify as follows.
    A Select the project to which the Alarm Viewer control will be connected.
    B Select the alarm setup that will be loaded or modified. The setup name displays in the Setup field.
    C Click one of the following buttons.
    Load The setup loads in the Alarm Viewer. The Alarm List is re-filtered and re-displayed.
    Modify Current The Modify Setup dialog box opens. Continue to Step 3.1.2.

    Alarm Viewer Setup Button

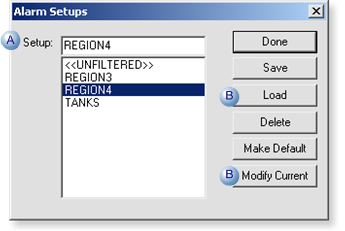

  3. Click Setup in an Alarm Viewer:

    The Alarm Setups dialog box opens.

  4. Select a setup to modify as follows.
    A Select the alarm setup that will be loaded or modified. The setup name displays in the Setup field.
    B Click one of the following buttons.
    Load The setup loads in the Alarm Viewer. The Alarm List is re-filtered and re-displayed.
    Modify Current The Modify Setup dialog box opens. Continue to Step 3.1.2.

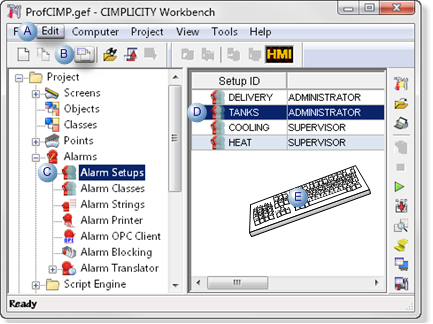

    Workbench Alarm Setups Icon (Modify a Setup)

    Note: An authorized user can open a Modify Setup dialog box to modify an existing setup. The project does not have to run  to open the Modify Setup dialog box through the Workbench.
  5. Select a Setup ID in the Workbench right-pane.
  6. Do one of the following.
    A Click Edit>Properties on the Workbench menu bar.
    B Click the Properties button on the Workbench toolbar.
    C In the Workbench left pane:
    1. Right-click Alarm Setups.
    2. Select Properties on the Popup menu.
    D In the Workbench right pane:
    Either Or
    Double click the Setup ID
    1. Right-click the Setup ID.
    2. Select Properties on the Popup menu.
    E Press Alt+Enter on the keyboard.
  7. Right-click Alarm Setups.
  8. Select Properties on the Popup menu.
  9. Right-click the Setup ID.
  10. Select Properties on the Popup menu.
