Open the Point Control Panel through CimView

About this task

Note: Viewing the Point Control Panel through CimView is available if  the role assigned to your user ID has authorization .

The Point Control Panel provides you with a forum in which you can easily review and change point values and status during runtime.

Procedure

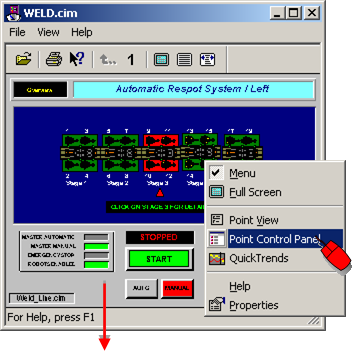

  1. Right-click the CimView screen or an object.
  2. Select Point Control Panel on the Popup menu.

Results

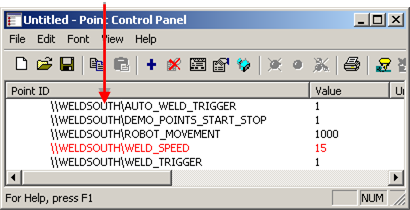

The Point Control Panel opens displaying the points that are configured for the CimView screen or the selected object.

Note: If there are no points associated with the selected object, a message informs you. The Point Control Panel does not open.
