Step 4. Configure Objects that are in Frames

About this task

Configuration options are available for objects that have been placed in a frame.

Do either of the following to open the Properties - Object dialog box.

  • Frame tab in the Properties - Frame Container dialog box.
  • Standard.

Frame tab in the Properties - Frame Container dialog box

Procedure

  1. Open the Properties - Frame Container dialog box.
  2. Select the Frames tab.
  3. Expand the tree.

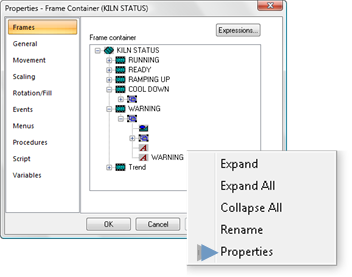

  4. Right-click an item in the tree.

    Note: A box highlights the selected object on the CimEdit screen.

  5. Select Properties on the Popup menu.

    Standard

  6. Open the frame that has the object.
  7. Select the object as you would any object on a CimEdit screen.
  8. Do either of the following.
    • Right-click the selected object; select Properties on the Popup menu.
    • Click Properties in the Home>Properties group on the CimEdit Ribbon bar.

Results

The Properties - Object dialog box opens. Object configuration is available.
