10.1 Configure a PRT_GRP Table

About this task

A Create a PRT_GRP Table
B Configure the PRT_GRP Maintenance Events
C Use the Defaults for the Remaining Maintenance Event Tabs
  1. Create a PRT_GRP Table

Procedure

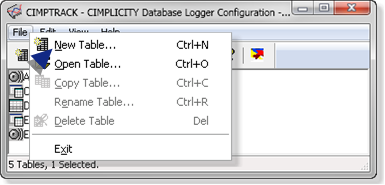

  1. Select File>New Table on the Database Logger window menu bar.

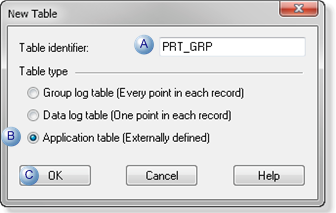

    A New Table dialog box opens.

  2.  Do the following.
    A Table identifier Enter PRT_GRP.
    B Table type Check Application table (Externally defined).
    C OK button Click.

    Result: The PRT_GRP Table Properties dialog box opens.

    1. Configure the PRT_GRP Maintenance Events

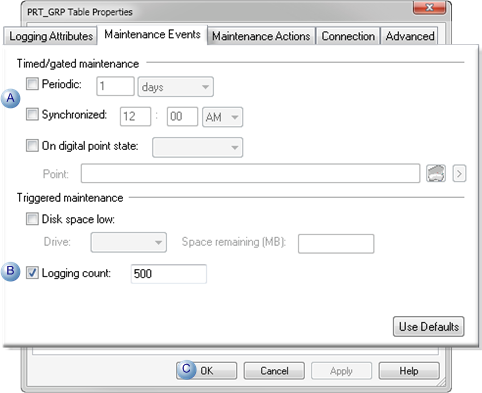

  3. Select the Maintenance Events tab in the PRT_GRP Table Properties dialog box.
  4. Do the following.
    A Time/gated maintenance Clear the check boxes:
    • Periodic
    • Synchronized
    B Triggered maintenance
    1. Check Logging count.
    2. Enter 500
    C OK button Click.
    1. Use the Defaults for the Remaining Maintenance Event Tabs
  5. Check Logging count.
  6. Enter 500
  7. Do the following on other tabs in the PRT_GRP Table Properties dialog box.
    Tab Action
    Logging Attributes Click Use Defaults.
    Maintenance Actions Click Use Defaults.
    Connection Check Use default alarm connection.
    Advanced Check Use default.
  8. Close the PRT_GRP Table Properties dialog box.

Results

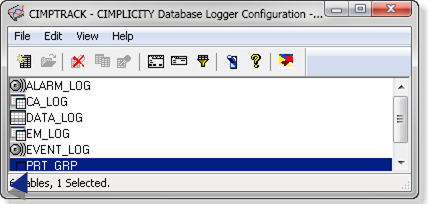

The CIMPLICITY Database Logger Configuration window should look similar to this.
