8.6. Add Another Function Block to the AddParts RCO
About this task
A | Open a Move Item Function Block |
B | Configure the Move Item Function Block |
C | Add the LOADtoROBOTCONV to the AddParts List |
- Open a Move Item Function Block
Procedure
- Select the AddParts decision in the TrackerCfg_UI left-pane.
-
Click Popup Menu button
to the right of the Output Logic Module field.
-
Select Edit on the Popup menu.
The Output Logic Wizard for the AddParts logic module opens.
-
Click the New button
on the AddParts Output Logic Wizard toolbar.
The Select a Function Block browser opens.
- Expand the PRT folder.
-
Double-click Move Item.

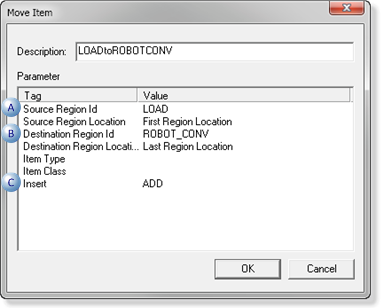

The Move Item dialog box opens.
- Configure the Move Item Function Block
-
Select the following.
Parameter Value Comment A Source Region Id LOAD Source Region Location First Region Location Default: B Destination Region Id ROBOT_CONV Destination Region Location Last Region Location Default Item Type Leave blank so whatever type that is in the LOAD region will be moved. Item Class Leave blank so the Block and Carrier will be moved. C Insert ADD - Click OK to close the Move Item dialog box.
- Add the LOADtoROBOTCONV to the AddParts List
-
Check that the
LOADtoROBOTCONV
item is listed at the end of the Function Blocks list in the Output Logic Wizard. - Click OK to close the Output Logic Wizard.
Results
The OLM should now be able to move a block/carrier from the LOAD to the ROBOT_CONV regions.
