9.2. Create a  RCONV_MACH0 Decision for the SPLIT Site

About this task

The SPLIT RCO will require two decisions to send block/carriers to either the MACHINE0 or MACHINE1 region.

This first decision will move items to MACHINE0.

A Create a RCONV_MACHO Decision
B Configure a Move to Machine 0 OLM
C Finish the Move to Machine 0 OLM Configuration
  1. Create a RCONV_MACHO Decision

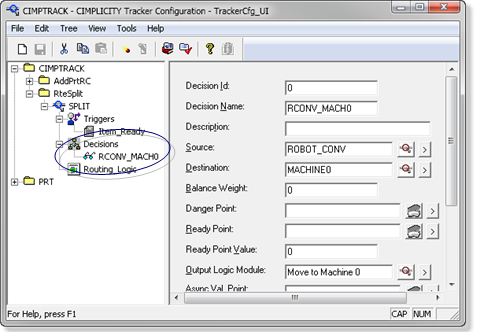

Enter the following general information about the decision.

Decision Id 0
Decision Name RCONV_MACH0
Description Optional
Source ROBOT_CONV
Destination MACHINE0
  1. Configure a Move to Machine 0 OLM

Procedure

  1. Create a new Output Logic Module
    Name Move to Machine 0
    Function Block Set Point with Value
    Description Machine 0

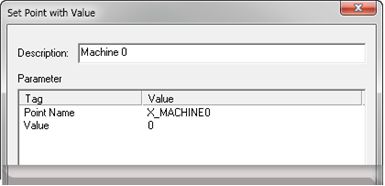

    Point Name X-MACHINE0
    Value 0
    Note: You created X_MACHINE0 when you completed the route list during the PRT configuration.
  2. Click OK.

    The Set Point with Value dialog box closes.

    1. Finish the Move to Machine 0 OLM Configuration

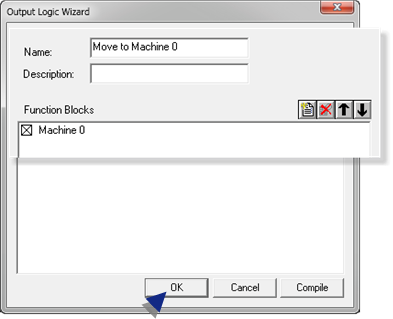

    The Move to Machine 0 output logic includes one function block.

    Click OK.

Results

The Output Logic Wizard dialog box closes. There is now a decision to move items to Machine 0.
