Option 2.1 Open the Expression Browser through RCO Configuration

Procedure

  1. Open the Select a Function Block browser through the TrackerCfg_UI RCO configuration modules, output and routing logic.

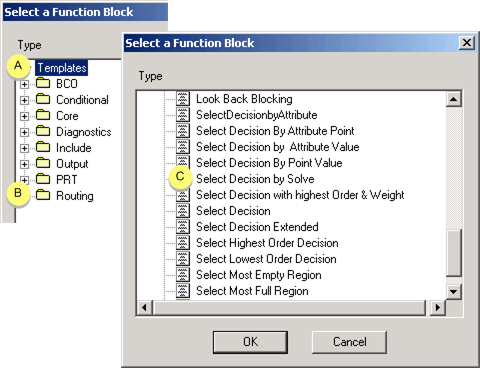

  2. Open a Select Decision by Solve dialog box as follows.
    A Expand the Templates folder.
    B Expand the Routing folder.
    C Double-click Select Decision by Solve.

    The Select a Decision by Solve dialog box opens.

  3. Double-click Solve expression.

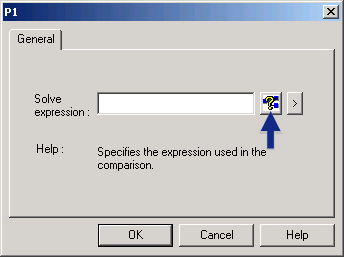

    A P1 dialog box opens.

  4. Double-click the Query Engine button.

Results

The Expression Browser opens in basic view.

Note: After you first open the TrackerCfg_UI and select a TADB database make sure you do a configuration update in the Workbench. This will establish the location of the database; the Query Engine will know where to look for query results. If you do not do a configuration update the Expression Browser will not open.
