Assign a Data Attribute Enumerated Set to a Tag | Proficy Historian 2024 Documentation

Before you begin

Create the tag for which you want to use an enumerated set.
Create a data attribute enumerated set set that you want to assign to a tag.

About this task

If you assign a data attribute enumerated set to a tag, when you retrieve the tag data, the corresponding custom text that was mapped appears.

Example of a Data Attribute Enumerated Set

Suppose you have created the following states in a data attribute enumerated set:


State Name	State Value
Old	1
Bad	2
Good	30

Suppose you assign the data attribute enumerated set to a tag. If the tag's quality status are, say, 30, 30, 1, and 2, when you retrieve the tag values, Good, Good, Old, and Bad, respectively, are retrieved instead of the actual quality status values in the Attributes column.

Procedure

Access Configuration Hub.
In the NAVIGATION section, under the Configuration Hub plugin for Historian, select Tags.
Select the tag to which you want to assign an enumerated set.
The details of the tag appear in the DETAILS section.

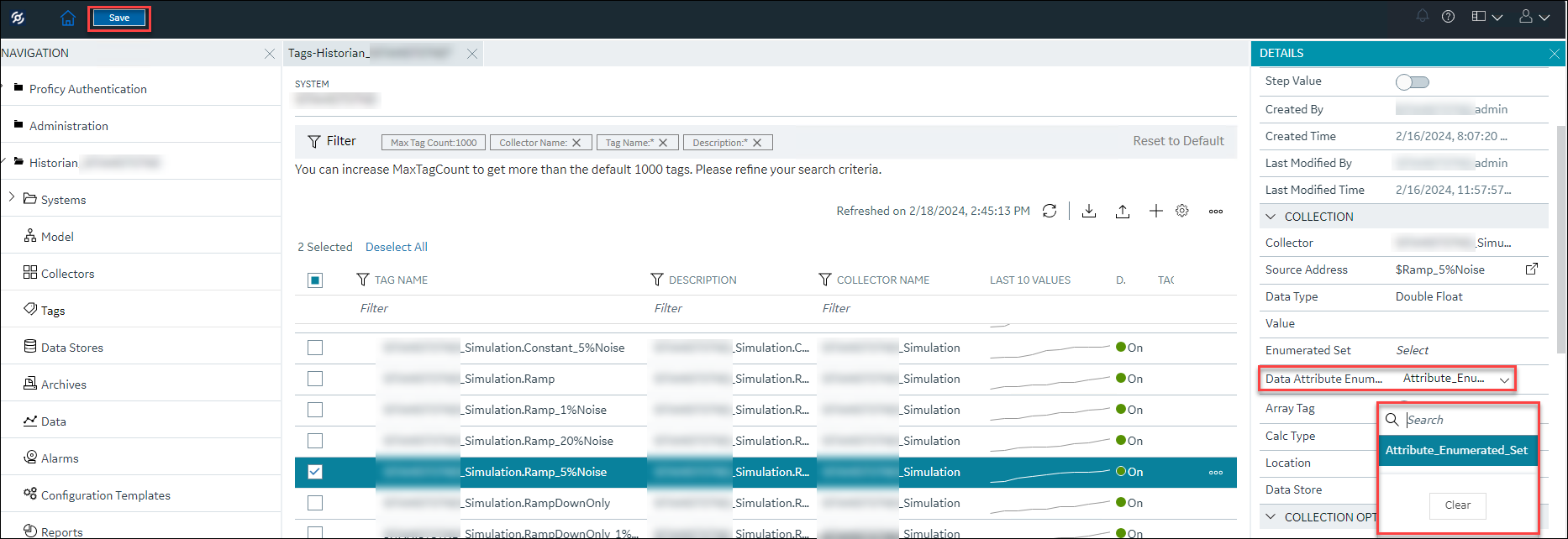

Under Collection, select Data Attribute Enumerated Set.
In the upper-left corner of the page, select Save.
The selected data attribute enumerated set is assigned to the tag.
