Create a Functional Failure

Before You Begin

This topic assumes that you have a pre-established RCM analysis with functions.

Steps

1. Access the function for which you want to create a functional failure.

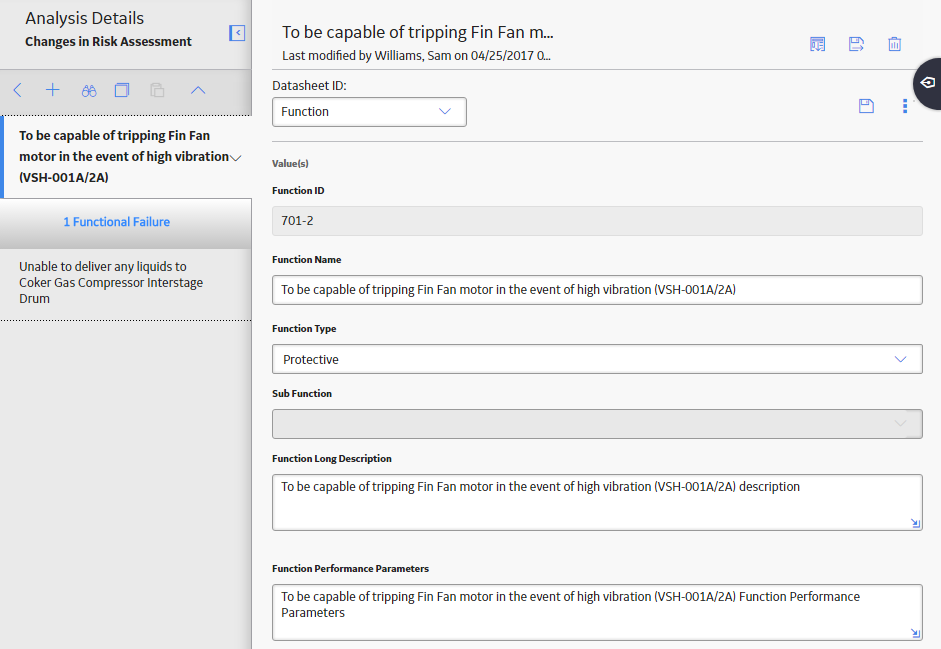

2. In the left pane select a function.

   The workspace for the selected function appears.



3. In the left pane, select , and then select Add Functional Failure.

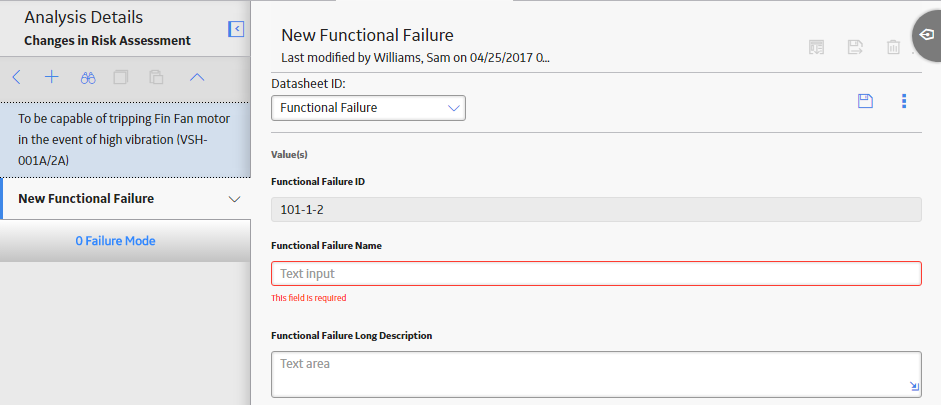

   The workspace for the new functional failure appears.



4. As needed, enter values in the available fields.

5. Select .

   The functional failure is saved.
