Create a Conditional Modifier

Before You Begin

• Create a Layer of Protection Analysis (LOPA).

• As needed, modify the Consequence Adjustment Probabilities records, which store the default probability for each modifier type.

Steps

1. Access the LOPA for which you want to create a Conditional Modifier.

2. In the left pane, select Conditional Modifiers.

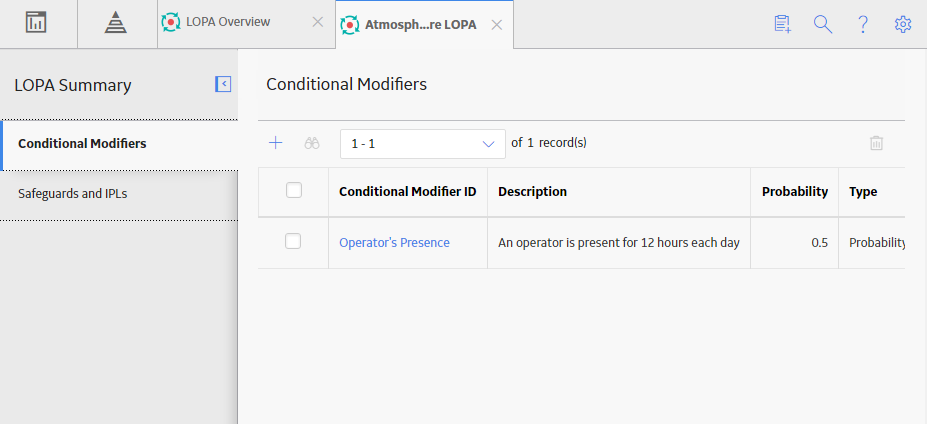

   The Conditional Modifiers workspace appears, displaying a list of Conditional Modifiers linked to the LOPA.



3. In the upper-left corner of the workspace, select .

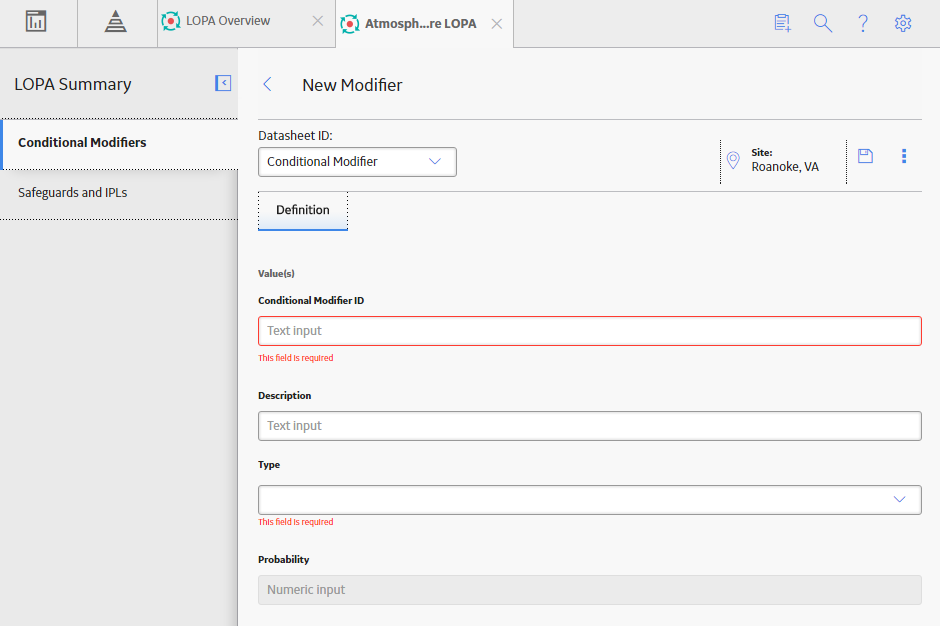

   A blank datasheet for the Conditional Modifier appears.



4. As needed, enter values in the available fields.

5. On the upper-right corner of the datasheet, select .

   The Conditional Modifier is created and associated with the LOPA.

Results

• In the Conditional Modifiers workspace, the Conditional Modifier that you created appears in the list of records.
• The unmitigated consequence frequency value and mitigated consequence frequency value for the LOPA are recalculated.
• The summary of the LOPA is updated with the details of the Conditional Modifier.
