CIMPLICITYAssociate Item Example
About this task
Parameters
This function block has the following parameters:
First Blocks Parameters
| Parameter | Description |
| Source Region ID | SRC1 |
| Source Region Location | 1 |
| Destination Region ID | DST1 |
| Destination Region Location | PRT_LAST |
| Item Type | |
| Item Class | VEHICLE |
| Insert | Insert |
| Auto Associate | False |
Second Blocks Parameters
| Parameter | Description |
| Source Region ID | SRC2 |
| Source Region Location | 1 |
| Destination Region ID | DST1 |
| Destination Region Location | PRT_LAST |
| Item Type | |
| Item Class | VEHICLE |
| Insert | Add |
| Auto Associate | False |
Procedure

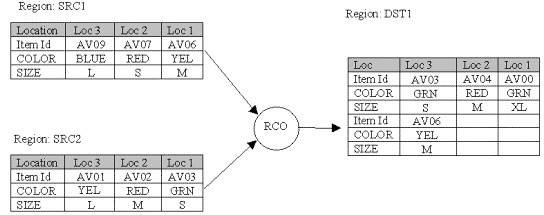

- An Output Module with two Associate Item Blocks is executed.
- The first block takes the item from the head location of Region SRC1 and inserts it into the tail location of region DST1.
- The second block takes the item from the head location of region SRC2 and adds it to the tail location of region DST1.
