CIMPLICITYBlock by Attribute Example
About this task
Parameters
This function block has the following parameters:
| Parameter Name | Parameter Value |
| Always Evaluate | Hard |
| Item Class | VEHICLE |
| Location | 1 |
| Attribute ID | COLOR |
| Start Character | 0 |
| Attribute Length | 0 |
Procedure

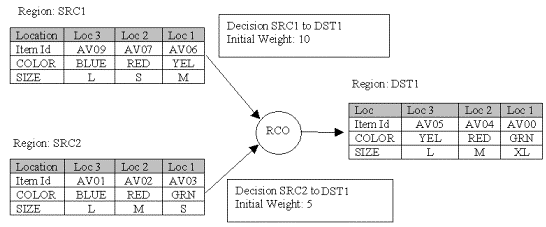

- For decision SRC1 to DST1, the source region attribute value is YEL and the destination attribute value is YEL. The attributes match so the decision is not eliminated.
- For Decision SRC2 to DST1, the source region attribute value is GRN and the destination attribute value is YEL. The attributes do not match so the decision is eliminated.
