Relative Setpoint

Relative setpoint adds the offset value to the current value of the point. The result is downloaded to the point.

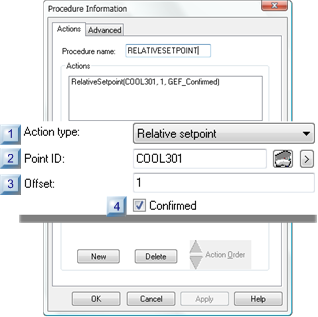

Configure the action as follows.

1	Action type
2	Point ID
3	Offset
4	Confirmed

1	Action type

Select Relative setpoint.

2

Point ID

Point on which a setpoint is performed.

• Offset values must be integers or real numbers.
• Point must be a Read/Write point.

	Opens the Select a Point browser.
	Opens a Points Popup menu.

3

Offset

Number added or subtracted from the point's value when a user

• Clicks the Up/Down arrows in the default box.
• Presses the Up/Down arrow keys.

4

Confirmed

(Optional) Runtime confirmation.

Checked	Requires confirmation. A message box will display before the action occurs requesting confirmation to proceed.
Clear	Does not require confirmation.
Default	Clear
