K Series - Legacy

Manufacturing for the K-Series has been discontinued – except for the items identified below:

Retrofit Existing K-Series Devices to the P40 Agile in Minutes

Traditionally, retrofitting an existing relay has been a challenging, time consuming task often requiring re-engineering, new drawings, panel modifications, re-wiring and re-testing.

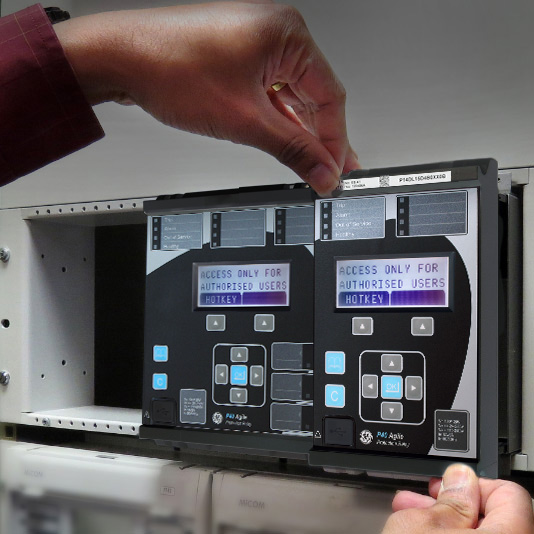

The P40 Agile relay slides into the existing case and S1 Agile provides quick and easy setting file conversion.





Step 1 update settings file

Retrofit Benefits

  • Shorter preparation time
  • Easy setting file conversion
  • Shorter outage time
  • Straight forward changeout
  • No drilling or panel cutting
  • P40 Agile slides into existing case
  • Lower refurbishment cost
  • Lower operational costs
  • Fewer spares
  • GE Vernova Services and Support
 no panel drilling / setting conversion / no tools required / no panel cutting
 		Step 3 plug & play reconnection

P40A Strengths

  • Simple ordering - Universal hardware
  • Withdrawable
  • Battery monitoring
  • Wiring scheme monitoring
  • Logic input hardware
  • Works straight from the box
  • Sensitivity
  • Multi-language with documentation
  • Graphical logic (PSL)
  • Harsh environment withstand




P40 Agile retrofit solutions are available for:

Non-Directional RelaysDirectional RelaysVoltage/Other Relays
KCGG110KCEG130KAVR100
KCGG120KCEG140KAVS100
KCGG122KCEG142KVFG122
KCGG130KCEG150KVFC142
KCGG140KCEG152KVTL100
KCGG141KCEU140KVTL101
KCGG142KCEU141KVTR100
KCGG142-02KCEU142KVTR102
KCGU110KCEU150
KCGU140

For more information see brochure
