Setting new standards

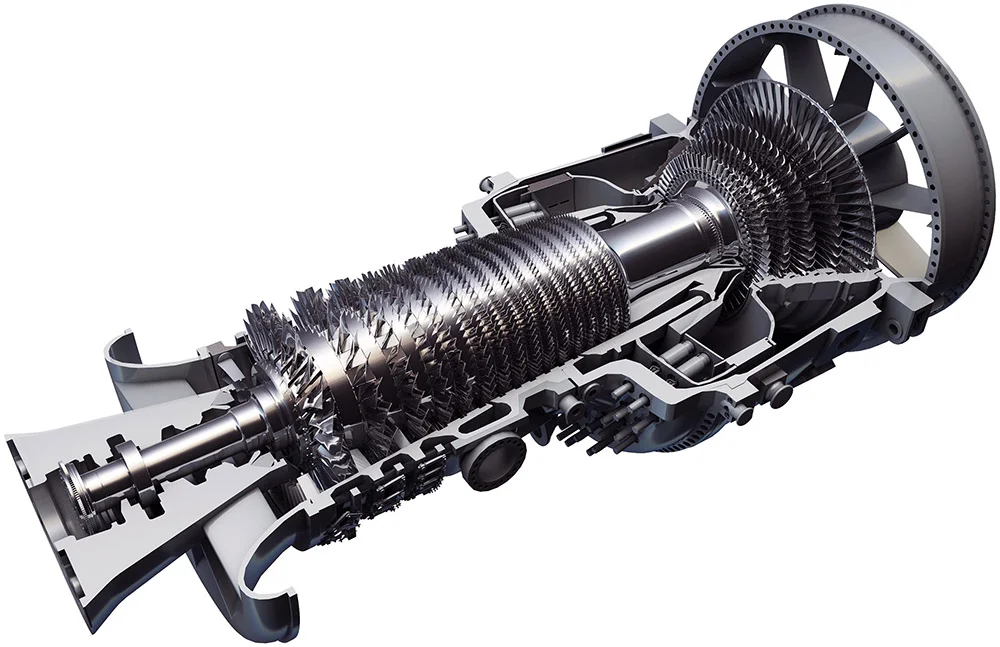

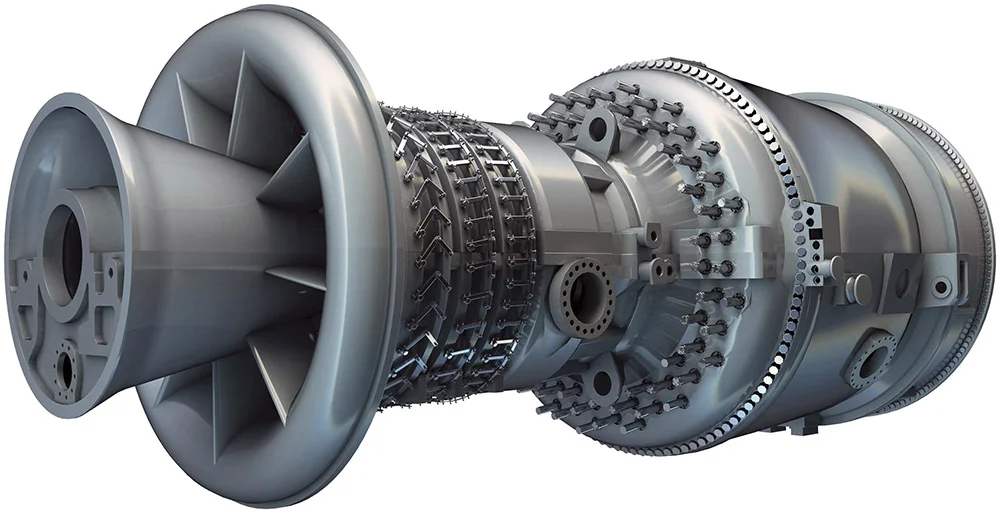

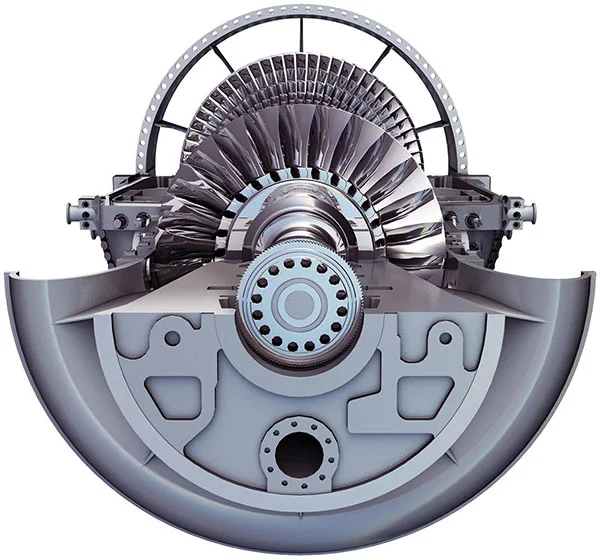

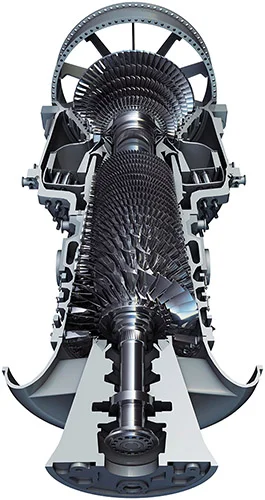

GT13E2 gas turbine features and benefits

With more than 14 million operating hours and a wide range of environmental and operational conditions, the GT13E2 gas turbine has the versatility to fit nearly every possible power plant application. Available through two complementary models, the GT13E2 is yet again setting higher performance standards for E-class gas turbines.


More than 38% efficiency in simple-cycle

The GT13E2 is able to help meet over 38% simple-cycle efficiency and over 55% combined-cycle efficiency.


High fuel flexibility

Thanks to its advanced burner technology, it can reliably operate with a wide range of fuel compositions, including high hydrocarbon fuels, without hardware changes. The GT13E2 heavy duty gas turbine can also operate with up to 30% hydrogen.


Two operating profiles

Switch online between two operating modes—one optimizing performance, the other substantially extending standard inspection intervals. This unique capability offers the potential for financial savings by allowing the plant operator you to react quickly to fluctuating power demands, while keeping costs in line.


Outstanding operational flexibility

With over 170 gas turbines installed worldwide in 35 countries, the GT13E2 can operate in extreme conditions from -50°C to +55°C and the most demanding applications like industrial aluminum smelters where the gas turbine features improved survivability from grid disruptions and load transients.


Specifications

Enhanced features, expanded possibilities

Take a closer look at the GT13E2 gas turbine’s specifications.

Specifications shown are 50 Hz

  GT13E2-210
Net output (MW) 210
Net heat rate (Btu/kWh, LHV) 8980
Net heat rate (kJ/kWh, LHV) 9474
Net efficiency (%, LHV) 38.0%
Ramp rate (MW/minute) 14/36
Startup Time (RR Hot, Minutes) 25
Simple Cycle
Combined Cycle 1x1
Combined Cycle 2x1

GT13e2 gas turbines can run on up to 30% hydrogen fuel.

NOTE: All ratings are based on ISO conditions and natural gas fuel. Actual performance will vary with project-specific conditions and fuel.

Customer stories

An easy decision

As the world’s largest copper supplier, Chile produces more than 5 million tons of the metal per year, accounting for more than 30% of global supply. BHP Billiton, a major player in the world of copper mining, commissioned a consortium, which contracted with an EPC, to execute its vision of responsible and sustainable growth via the construction of a new power plant.

Flexibility and reliability were key. BHP Billiton also required a power generation solution that offers high efficiency and availability, and the consortium and EPC selected two GT13E2 heavy duty gas turbines to power BHP Billiton’s 517 MW Kelar combined-cycle power plant.

overall plant efficiency

1.5 million tons

CO2 emissions offset annually

"

"We are proud to see that the industry has once again recognized our gas turbines as the most suitable for Chile's conditions and operational needs. The mining activity needs a reliable, competitive and cleaner power supply that allows them to run 24/7 while supporting their expansion projects."

Steve Meszaros

GE Gas Power (ex-Alstom)


Helping Côte d’Ivoire stay powered

In February 2020, GE Gas Power was selected by Azito Energie S.A.  to provide gas turbine technology and services for the Azito phase IV power plant, located in the Yopougon district of Abidjan in Côte d’Ivoire. The extension of the power plant will generate 253 megawatts (MW) and will play a significant role in supporting the country’s energy plan. Under the contract, GE will supply its GT13E2 gas turbine in combined-cycle configuration, one heat recovery steam generator, one steam turbine generator, condenser and associated systems and maintenance services for 20 years.

710 MW

Total plant generation for Côte d’Ivoire

Up to 30%

of the nation’s power supply

"

"We have a long-standing relationship with GE and are thrilled that the Azito phase IV power plant will also be one of the most efficient power plants in the region and will serve as a model for the development of similar power projects in Africa. Providing reliable and sustainable power is a priority for us. Our plant makes use of Côte d’Ivoire’s supplies of natural gas and with this expansion we will continue to contribute significantly to country’s energy security and stability."

Luc Aye

Managing Director, Azito Energie S.A.
