How combined heat and power (CHP) works for hospitals and other large facilities

By bringing the power source onsite, GE Vernova delivers efficient, reliable energy to municipal districts, manufacturing plants, hospitals, airports, shopping malls, data centers, sports arenas, universities, hotels, office buildings, and a variety of other operations.

For large facilities that serve entire communities, like hospitals, combined heat and power (CHP) systems from GE Vernova offer electricity and thermal energy production onsite, eliminating the need to purchase electricity while separately burning fuel in an onsite boiler to produce heat.

CHP also helps the facility avoid electricity losses that can occur in transport, transmission, and distribution processes from the point of power generation to the facility. With CHP, facility operators can expect greater efficiency, profitability, and environmental benefits, including:

  • Up to 45% electrical efficiency
  • Up to 95% thermal efficiency
  • Usable thermal energy from turbine waste heat for:
    • Preheating or generating steam
    • Process heating or cooling system (tri-generation) applications
  • Self-generation compatibility with existing boiler or heat storage systems
  • Cost savings from higher net efficiency
  • Better use of local energy resources
  • Up to 30% reduced CO2 emissions
  • Eligibility for government energy reform-associated incentives promoting self-power generation
  • Reduced transmission and distribution (T&D) congestion
  • Faster recovery from grid disturbances
  • Improved financial planning due to less dependence on grid power and its associated price volatility and supply uncertainty
  • Surplus electricity that can be exported to the power grid for profit

GE Vernova’s portfolio of aeroderivative gas turbines for large facilities

Reliable combined heat and power systems for hospitals and other large facilities that serve a community are essential to maintaining operations. When a large facility operator turns to GE Vernova for a CHP solution, a variety of aeroderivative gas turbines can be employed in generation efforts, depending on site requirements and operator needs and expectations.

With the broadest gas turbine for CHP product portfolio in the industry, GE Vernova is uniquely positioned to provide its customers with the right products to provide the required ratio of power to heat for their CHP systems.

LM2500 aeroderivative gas turbine

The LM2500 is the most reliable aeroderivative gas turbine in the world, featuring reliability consistently above 99%.

Recommended for combined cycle, onshore and offshore power generation, mechanical drive, and cogeneration, the LM2500 power plants feature 23-34 MW simple cycle output, up to 38.7% efficiency and accommodate a wide variety of fuels. It also comes with optional clutch-less synchronous condensing.

LM6000 aeroderivative gas turbine

The LM6000 allows you to operate on a wide variety of fuels—including natural gas, liquified petroleum gas (LPG)(propane and butane), isopentane, ethanol, diesel, and Coke Oven gas.

This allows you to quickly switch between fuels to save money, all without stopping or a reduction in power. It has a 45-57 MW net power output and up to 41.4% net efficiency. Its start time for a simple cycle is less than 5 minutes, and its ramp rate is 30 MW/minute. The LM6000 offers 100% start reliability and > 99% operational reliability and availability. Its fast start allows operators to differentiate their dispatch capability, and its dual-fuel capabilities provide fuel flexibility and help customers meet emissions limits.

LMS100 aeroderivative gas turbine

The LMS100 aeroderivative gas turbine is one of the highest-quality simple-cycle efficiency gas turbines in the world.

Its simple cycle output is 113 MW, and its combined cycle output (1x1) is 135 MW. The LMS100 features up to 43% net efficiency, 99.6% reliability, and 96.7% availability. Its start time for a simple cycle is less than 8 minutes, and its ramp rate is 50 MW/minute. The LMS100 can provide power at part-load as efficiently as most gas turbines at full load, and can operate with very little power loss, supporting the grid in times of high demand. Its intercooled gas turbine system provides rapid startup, with an 8-minute start to full load and emergency ramp speeds of up to 500 MW/minute, and construction includes a modular “supercore”, which can be exchanged in less than four days to enhance plant availability.

TM2500 mobile aeroderivative gas turbine

Recommended for mobile power applications available within three months and fast-track or short-term duration projects, the TM2500 50 Hz and 60 Hz solutions have a 34.6 MW average power output and 37% average net efficiency.

Its start time for a simple cycle is fewer than 5 minutes, and its ramp rate is 20 MW/minute. The TM2500 is mobile and easy to transport. Its small block size allows good part-power turndown and efficiency. It is relocatable if project requirements change, and it comes with optional clutch-less synchronous condensing.

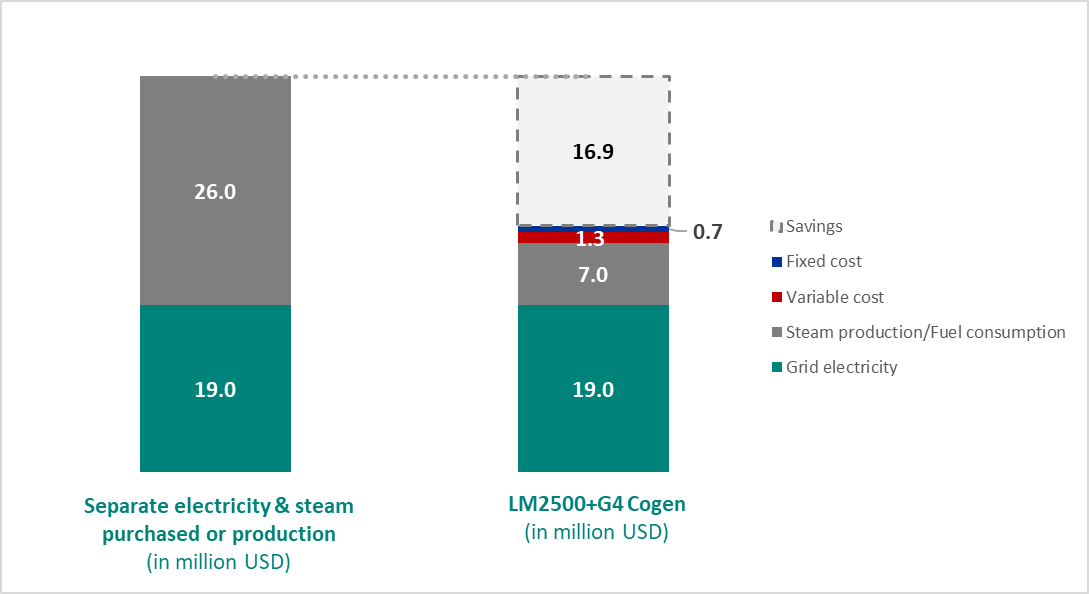

Annual savings using LM2500+ for CHP


What about cost?

Up to 95% thermal efficiency means operators of large facilities can realize both cost and energy savings when they implement CHP generation. Burning less fuel to help meet energy requirements and reducing thermal and electrical costs can translate to as significant expense reduction and up to 40% energy savings using waste heat from turbines. Less reliance on imported fuel, reduced infrastructure investment and more network stability also mean monetary savings.

Using the LM2500 aeroderivative gas turbine for CHP generation, for example, facility operators realizing a 40% energy savings also save about $19 million per year versus what they would spend on power generated by electricity and steam purchase or production as separate resources.
